Base class that is used by all classes that can be instantiated from XOML markup. More...

#include <CzXomlResource.h>

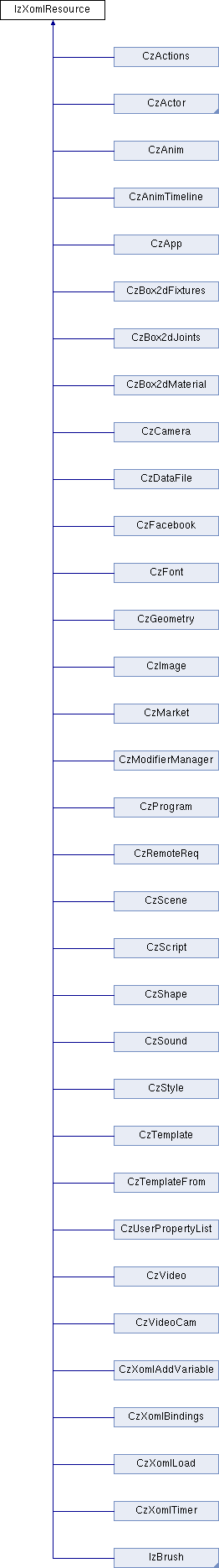

Inheritance diagram for IzXomlResource:

Public Types
enum	eSetPropertyError { NotFound = 0, Success = 1, SearchForResource = 2, IncompatibleTypes = -1, NoAccess = -2 }
	Values that represent a SetProperty error. More...
Public Member Functions
void	setParent (CzXomlResourceManager *parent)
CzXomlResourceManager *	getParent ()
void	setName (const char *name)
	Sets the name of the resource. Note that resource names should be unique across the same resource type. For example, two images should not share the same name.
CzString &	getName ()
void	setDebugInfo (const char *info)
CzString &	getDebugInfo ()
unsigned int	getNameHash ()
void	setClassType (const char *type_name)
	Sets the class type.
unsigned int	getClassTypeHash ()
void	setActualClassType (const char *type_name)
	Sets the actual class type.
unsigned int	getActualClassTypeHash ()
void	setTag (const char *Tag)
	Sets the resource group tag.
unsigned int	getTagHash ()
void	setManaged (bool managed)
bool	isManaged () const
void	setContainer (IzXomlResource *container)
IzXomlResource *	getContainer ()
	IzXomlResource ()
virtual	~IzXomlResource ()
virtual int	LoadFromXoml (IzXomlResource parent, bool load_children, CzXmlNode node)=0
virtual bool	PostLoadFromXoml (IzXomlResource parent, CzXmlNode node)
virtual void	Remove ()
	Removes and destroys this resource.
Static Public Member Functions
static int	setProperty (CzXomlClassDef class_def, IzXomlResource target, unsigned int property_name, const CzString &data, bool delta)
	Sets the named property of the specified target resource.
static int	setProperty (CzXomlClassDef class_def, IzXomlResource target, unsigned int property_name, const CzXomlProperty &prop, bool delta)
	Sets the named property of the specified target resource.
static int	setProperty (CzXomlClassDef class_def, IzAnimTarget target, CzAnimInstance *animation)
	Updates property from supplied animation.
static int	setProperty (CzXomlClassDef class_def, IzXomlResource target, unsigned int property_name, CzXomlVariable *variable)
	Sets the named property of the specified target resource from a variable.
static int	getProperty (CzXomlClassDef class_def, IzXomlResource target, unsigned int property_name, CzXomlProperty &prop)
	Gets the named property of the resource.
Protected Attributes
CzString	Name
	Resource name (unique per resource type)
CzString	DebugInfo
	Filename and line number for debug info.
CzXomlResourceManager *	Parent
	Parent manager.
bool	Managed
	True if managed by the resource system. Managed resources are auto cleaned up by the resource system.
unsigned int	NameHash
	Resource name hash.
unsigned int	ClassTypeHash
	Base type of XOML class (e.g. Scene, Actor, Animation, Game etc..)
unsigned int	ActualClassTypeHash
	Actual type of XOML class.
unsigned int	TagHash
	Tag name as a string hash, used to put resources into loading groups.
IzXomlResource *	Container
	The resource that acts as the container for this resource.

Detailed Description

Base class that is used by all classes that can be instantiated from XOML markup.

All classes that can be created from XOML are derived from IzXomlResource. IzXomlResource provides the base details of the XOML resource including:

Name of resource
Generic type of class
Actual type of class
Pure virtual LoadFromXoml method that should be implemented by derived classes. The XOML system will call this method to initialise the class from its XML attriibutes and inner tags

Each class that is derived from IzXomlResource must have a creator which is a class derived from IzXomlClassCreator which creates an instance of our XOML class. The creator class is a very simple class as is shown by the scene creator class example below:

class CzSceneCreator : public IzXomlClassCreator
{
public:
    CzSceneCreator()
    {
        setClassName("scene");
    }
    IzXomlResource* CreateInstance(IzXomlResource* parent) { return new CzScene(); }
};

To create a class that can be instantiated from XOML you should:

Derive the class from IzXomlResource
Set its XOML base type (game, actor, scene, animation etc..)
Implement a class derived from IzXomlClassCreator that implements CreateInstance() which creates an instance of the class
Add the class type to the list of class creators in CZ_XOML using addClass()

Member Enumeration Documentation

enum IzXomlResource::eSetPropertyError

Values that represent a SetProperty error.

NotFound - The requested property was not found Success - Property was set successfully IncompatibleTypes - The supplied data is not compatible with the target property type ReadOnly - The property is read only SearchForResource - The property that was supplied is of type string but the target property is a resuorce. If this occurs then usually the caller will search for the resuorce

Enumerator:

NotFound
Success
SearchForResource
IncompatibleTypes
NoAccess

Constructor & Destructor Documentation

IzXomlResource::IzXomlResource ( ) [inline]

virtual IzXomlResource::~IzXomlResource ( ) [inline, virtual]

Member Function Documentation

unsigned int IzXomlResource::getActualClassTypeHash ( ) [inline]

unsigned int IzXomlResource::getClassTypeHash ( ) [inline]

IzXomlResource* IzXomlResource::getContainer ( ) [inline]

CzString& IzXomlResource::getDebugInfo ( ) [inline]

CzString& IzXomlResource::getName ( ) [inline]

unsigned int IzXomlResource::getNameHash ( ) [inline]

CzXomlResourceManager* IzXomlResource::getParent ( ) [inline]

Reimplemented in CzAnimTimeline, and CzScene.

int IzXomlResource::getProperty	(	CzXomlClassDef *	class_def,
		IzXomlResource *	target,
		unsigned int	property_name,
		CzXomlProperty &	prop
	)		`[static]`

Gets the named property of the resource.

Returns the named property of the scene. The properties value is returned in a CzXomlProperty which is a structure that contains a union of all possible property types.

Parameters:

[in]	class_def	If non-null, class definition used to determine properties.
[in]	target	If non-null, target resource that contains the property.
	property_name	Name of the target element as a string hash (faster searching).
[out]	prop	The output property.

Returns:: See eSetPropertyError for list of possible return values

unsigned int IzXomlResource::getTagHash ( ) [inline]

bool IzXomlResource::isManaged ( ) const [inline]

virtual int IzXomlResource::LoadFromXoml	(	IzXomlResource *	parent,
		bool	load_children,
		CzXmlNode *	node
	)		`[pure virtual]`

virtual bool IzXomlResource::PostLoadFromXoml	(	IzXomlResource *	parent,
		CzXmlNode *	node
	)		`[inline, virtual]`

Reimplemented in CzActor, and CzScene.

void IzXomlResource::Remove ( ) [virtual]

Removes and destroys this resource.

Reimplemented in CzAnimTimeline.

void IzXomlResource::setActualClassType ( const char * type_name )

Sets the actual class type.

The actual class type is the actual name of the class without the Cz. For example CzAxtorImage would be actually called ActorImage and this is how it would be referred to in XOML.

Parameters:

type_name Name of the type.

void IzXomlResource::setClassType ( const char * type_name )

Sets the class type.

The class type is used to dtermine what type of category the class belongs to (e.g. Scene, Actor, Animation, Game etc..)

Parameters:

type_name Class tyoe name.

void IzXomlResource::setContainer ( IzXomlResource * container ) [inline]

void IzXomlResource::setDebugInfo ( const char * info ) [inline]

void IzXomlResource::setManaged ( bool managed ) [inline]

void IzXomlResource::setName ( const char * name )

Sets the name of the resource. Note that resource names should be unique across the same resource type. For example, two images should not share the same name.

Parameters:

name	Resource name.

void IzXomlResource::setParent ( CzXomlResourceManager * parent ) [inline]

int IzXomlResource::setProperty	(	CzXomlClassDef *	class_def,
		IzXomlResource *	target,
		unsigned int	property_name,
		const CzString &	data,
		bool	delta
	)		`[static]`

Sets the named property of the specified target resource.

Sets the named property of this object. The properties value (data) is supplied as a string and will be converted. If delta is set to true then the existing value of the property will be added to instead of replaced.

Parameters:

[in]	class_def	If non-null, class definition used to determine properties
[in,out]	target	If non-null, target resource that contains the property.
	property_name	Name of the target element as a string hash (faster searching).
[in]	data	The data to set to the property.
	delta	true if property should be added to instead of replaced.

Returns:: See eSetPropertyError for list of possible return values

int IzXomlResource::setProperty	(	CzXomlClassDef *	class_def,
		IzXomlResource *	target,
		unsigned int	property_name,
		const CzXomlProperty &	prop,
		bool	delta
	)		`[static]`

Sets the named property of the specified target resource.

Sets the named property of this object. The properties value (data) is supplied as a property and will be converted. If delta is set to true then the existing value of the property will be added to instead of replaced. if the class property is of type PT_Resource and the supplied property value is of type string then the this method will return SearchForResource which informs the caller to take the supplied property value as a string that contains the named string and shoudl search for it

Note that only the following automatic type conversions are supported:

string - any type can be converted to string
bool - string, int and float
int - string, bool and float
float - string, bool and int
vec2 - string, vec3 and vec4
vec3 - string, vec4
vec4 - string

Parameters:

[in]	class_def	If non-null, class definition used to determine properties.
[in,out]	target	If non-null, target resource that contains the property.
	property_name	Name of the target element as a string hash (faster searching).
[in]	prop	The data to set to the property.
	delta	true if property should be added to instead of replaced.

Returns:: See eSetPropertyError for list of possible return values

int IzXomlResource::setProperty	(	CzXomlClassDef *	class_def,
		IzAnimTarget *	target,
		CzAnimInstance *	animation
	)		`[static]`

Updates property from supplied animation.

Sets the property that is specified by the supplied animation. When a timeline animation targets the property of the object this method will be called by the animation to move the animations frame data into its target property.

Note that only the following automatic type conversions are supported:

string - any type can be converted to string
bool - int and float
int - bool and float
float - bool and int
vec2 - vec3 and vec4
vec3 - vec4
vec4 - none

Parameters:

[in,out]	class_def	If non-null, class definition used to determine properties.
[in,out]	target	If non-null, target resource that contains the property.
[in]	animation	If non-null, the animation.

Returns:: See eSetPropertyError for list of possible return values

int IzXomlResource::setProperty	(	CzXomlClassDef *	class_def,
		IzXomlResource *	target,
		unsigned int	property_name,
		CzXomlVariable *	variable
	)		`[static]`

Sets the named property of the specified target resource from a variable.

Sets the named property of this object. The properties value (data) is supplied as a variable and will be converted. If delta is set to true then the existing value of the property will be added to instead of replaced.

Note that only the following automatic type conversions are supported:

string - any type can be converted to string
bool - string, int and float
int - string, bool and float
float - string, bool and int
vec2 - string, vec3 and vec4
vec3 - string and vec4
vec4 - string

Parameters:

[in]	class_def	If non-null, class definition used to determine properties.
[in,out]	target	If non-null, target resource that contains the property.
	property_name	Name of the target element as a string hash (faster searching).
[in,out]	variable	If non-null, the suorce variable.

Returns:: See eSetPropertyError for list of possible return values

void IzXomlResource::setTag ( const char * Tag )

Sets the resource group tag.

Its often useful to be able to determine which group certain resources belong to. For example, you may load a group of resources into the global resource manager but later want to remove them. To save having to individually remove each resource you could remove all of those that fit into a specific group.

Parameters:

Tag The tag.
