#include <CzUITabBar.h>

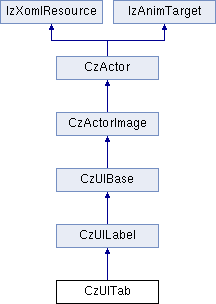

Inheritance diagram for CzUITab:

Public Member Functions
void	setView (CzUIBase *view)
CzUIBase *	getView ()
bool	setProperty (unsigned int property_name, const CzXomlProperty &data, bool delta)
	Sets the named property of the UITab.
bool	setProperty (unsigned int property_name, const CzString &data, bool delta)
	Sets the named property of the actor.
bool	getProperty (unsigned int property_name, CzXomlProperty &prop)
	Gets the named property of the actor.
	CzUITab ()
void	InitTab ()
void	PostInitTab (CzUITabBar *tabbar)
void	NotifyToggledOn ()
	Handles the toggled on event.
void	NotifyToggledOff ()
	Handles the toggled off event.
void	NotifyOrientationChange (CzScene::eOrientation old_orientation, CzScene::eOrientation new_orientation)
	Handles the orientation change event.
int	LoadFromXoml (IzXomlResource parent, bool load_children, CzXmlNode node)
	Creates an instance of this class from XML.
bool	UpdateFromAnimation (CzAnimInstance *animation)
	Updates actor property from supplied animation.
Static Public Member Functions
static void	InitClass ()
	Initialises the class.
static void	ReleaseClass ()
static CzXomlProperty	_getView (IzXomlResource *target)
static bool	_setView (IzXomlResource *target, const CzXomlProperty &prop, bool add)
Protected Member Functions
bool	UpdateBinding (unsigned int property_name, CzXomlVariable *var)
	Updates an actor property from the supplied XOML variable.
Protected Attributes
CzUIBase *	View
CzUITabBar *	TabBar
Static Protected Attributes
static CzXomlClassDef *	UITabClassDef = NULL

Constructor & Destructor Documentation

CzUITab::CzUITab ( ) [inline]

Member Function Documentation

CzXomlProperty CzUITab::_getView ( IzXomlResource * target ) [static]

bool CzUITab::_setView	(	IzXomlResource *	target,
		const CzXomlProperty &	prop,
		bool	add
	)		`[static]`

bool CzUITab::getProperty	(	unsigned int	property_name,
		CzXomlProperty &	prop
	)		`[virtual]`

Gets the named property of the actor.

Returns the named property of the actor. The properties value is returned in a CzXomlProperty which is a structure that contains a union of all possible property types. Note that as CzUITab is derived from CzUILabel, all CzUILabel properties will also be checked against.

Parameters:

	property_name	Name of the property.
[out]	prop	The property data that.

Returns:: true if it succeeds, false if property does not exist.

Reimplemented from CzUILabel.

CzUIBase* CzUITab::getView ( ) [inline]

void CzUITab::InitClass ( ) [static]

Initialises the class.

Sets up the classes avaiiable properties. Used by the XOML system to find, set amd get class properties.

Reimplemented from CzUILabel.

void CzUITab::InitTab ( )

int CzUITab::LoadFromXoml	(	IzXomlResource *	parent,
		bool	load_children,
		CzXmlNode *	node
	)		`[virtual]`

Creates an instance of this class from XML.

LoadFromXoml is the main method used by all classes that can be instantiated from XOML mark-up. This method creates an instance of this class from the supplied XML node structure specified by node. if parent is not NULL then the created instance will utilise the supplied parent to determine where it should live within the app. For example, if the parent is a scene then the actor will be placed in that scene. if the parent is another actor then this actor will be placed into the scene of the supplied actor and linked as a child to the parent actor. If load_chlldren is true then any child nodes contained within the actor will also be loaded. Note that as CzUIBase is derived from CzActorImage, CzActorImage::LoadFromXoml() will also be called to load CzActor specific properties.

Parameters:

[in]	parent	If non-null, the parent.
	load_children	true to load child nodes.
[in]	node	If non-null, the XOML markup node that defines this object

Returns:: negative value for error. if 0 then processing of further XOML will stop.

Reimplemented from CzUILabel.

void CzUITab::NotifyOrientationChange	(	CzScene::eOrientation	old_orientation,
		CzScene::eOrientation	new_orientation
	)		`[virtual]`

Handles the orientation change event.

When a screen orientation or size change occurs all actors will receive this event emabling them to modify themselves to take advantage of the new screen orientation / size. the default implementation for CzActorImage updates margin and visual sizes if they are precentage based. It also calls CzActor::NotifyOrientationChange() to update the position.

Parameters:

old_orientation	The old orientation.
new_orientation	The new orientation.

Reimplemented from CzUIBase.

void CzUITab::NotifyToggledOff ( ) [virtual]

Handles the toggled off event.

Reimplemented from CzUIBase.

void CzUITab::NotifyToggledOn ( ) [virtual]

Handles the toggled on event.

Reimplemented from CzUIBase.

void CzUITab::PostInitTab ( CzUITabBar * tabbar )

void CzUITab::ReleaseClass ( ) [static]

Reimplemented from CzUILabel.

bool CzUITab::setProperty	(	unsigned int	property_name,
		const CzXomlProperty &	data,
		bool	delta
	)		`[virtual]`

Sets the named property of the UITab.

Sets the named property of this UITab. The properties value supplied will be converted. If delta is set to true then the existing value of the property will be added to instead of replaced.

Parameters:

	property_name	Name of the property as a string hash (faster searching).
[in]	data	The property data.
	delta	true if property should be added to instead of replaced.

Returns:: true if it succeeds, false if property does not exist.

Reimplemented from CzUILabel.

bool CzUITab::setProperty	(	unsigned int	property_name,
		const CzString &	data,
		bool	delta
	)		`[virtual]`

Sets the named property of the actor.

Sets the named property of this actor. The properties value (data) is supplied as a string and will be converted. If delta is set to true then the existing value of the property will be added to instead of replaced. Note that as CzUITab is derived from CzUILabel, all CzUILabel properties will also be checked against.

Parameters:

	property_name	Name of the property as a string hash (faster searching).
[in]	data	The property data.
	delta	true to property should be added to instead of replaced.

Returns:: true if it succeeds, false if property does not exist.

Reimplemented from CzUILabel.

void CzUITab::setView ( CzUIBase * view ) [inline]

bool CzUITab::UpdateBinding	(	unsigned int	property_name,
		CzXomlVariable *	var
	)		`[protected, virtual]`

Updates an actor property from the supplied XOML variable.

Updates a single property from the value of the bound XOML variable. Note that as CzUITab is derived from CzUILabel, all CzUILabel properties will also be checked against.

Parameters:

	property_name	Name of the property.
[in,out]	var	If non-null, the variable.

Returns:: true if it succeeds, false if property does not exist.

Reimplemented from CzUILabel.

bool CzUITab::UpdateFromAnimation ( CzAnimInstance * animation ) [virtual]

Updates actor property from supplied animation.

Updates the actors property that is specified by the supplied animation. When a timeline animation targets the property of an actor this method will be called by the animation to move the animations frame data into its target property. Note that as CzUITab is derived from CzUILabel, all CzUILabel properties will also be checked against.

Parameters:

[in] animation If non-null, the animation.

Returns:: true if it succeeds, false if property does not exist.

Reimplemented from CzUILabel.

Member Data Documentation

CzUITabBar* CzUITab::TabBar [protected]

CzXomlClassDef * CzUITab::UITabClassDef = NULL [static, protected]

CzUIBase* CzUITab::View [protected]

The documentation for this class was generated from the following files:
